Large Photovoltaic Solar Greenhouse Fans Customized Length for Optimal Agro Product Growth

Large Image : Large Photovoltaic Solar Greenhouse Fans Customized Length for Optimal Agro Product Growth

Product Details:

Place of Origin:	Shandong, China
Brand Name:	NSR

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	$20.00/square meters >=200 square meters

Contact Now

Large Photovoltaic Solar Greenhouse Fans Customized Length for Optimal Agro Product Growth

Description

Manufacturer:	NSR	Instruction For Use:	For Agro
Size:	Large, Customizable Size	Type:	Multi-Span Agricultural Greenhouses, Commercial Greenhouse
Cover Material:	Glass	Usage:	Flower Vegetable Growing
Material:	Hot Galvanized Steel Frame Structure	Length:	Custonmized
Covering:	Glass Cover Greenhouse	Optional System:	Cooling System.irrigation System.ventilation.etc
Keyword:	Multispan Greenhouse	MOQ:	100 Square Meters
Top Height:	4.5m-7.5m

Products Description

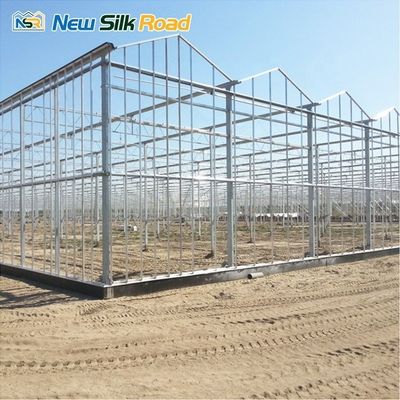

NSR GREENHOUSE - Venlo Type Multi-Span Agricultural Glass Greenhouse

* Venlo-style multi-span glass greenhouse is a kind of sturdy greenhouse. * The surface of the greenhouse is covered with tempered glass, with high light transmittance, strong and beautiful appearance. * The multi-span greenhouse has a high space utilization rate. Ventilation windows can be set on the top and around, with strong ventilation capacity, which can prevent heat loss and cold air intrusion. * Can be used for vegetable and fruit planting, aquaculture, animal husbandry, exhibitions, ecological restaurants, teaching and scientific research, etc.

Product Name	Venlo Type Multi-Span Agricultural Glass Greenhouse
Span	6m/8m/9.6m/10m/12m/Customized
Length	20m/50m/100m/Customized
Shoulder Height	1.5m-1.8m / Customized
Roof Height	3.5m-5.8m / Customized
Wind Load	1.2 kn/㎡
Snow Load	1.0 kn/㎡
Max Rain Quantity	150mm/h

Greenhouse system description

All steel pipes and connections are hot-dip galvanized

1. Suitable for cold weather areas, such as the United States, Canada, Russia and other regions; 2. The greenhouse has a beautiful appearance and a long service life. It is the highest grade product in the greenhouse; 3. The steel materials used in the greenhouse frame structure and connecting parts are all hot-dip galvanized; 4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code"; 5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";

Top cover

1. The top of the greenhouse is usually covered with 4/5mm tempered float glass; 2. The thickness of the glass can also be selected according to the needs of other thicknesses; 3. According to customer needs, choose higher-grade astigmatism glass, which can increase crop yield; 4. According to customer needs, you can choose to cover the top with polycarbonate sheet.

Wall covering

1. The walls of the greenhouse are usually covered with 4+4/5+5mm tempered hollow float glass; 2. The thickness of the glass can also be selected according to the needs of other thicknesses; 3. According to customer needs, single-layer glass can be selected, which is suitable for parts of the Middle East and Africa; 4. According to customer needs, you can choose to cover the polycarbonate sheet around.

Greenhouse Ventilation System

Top Ventilation System Of The Greenhouse

1. Ventilation windows can be installed on side 1 or side 2 of the spire on the top of the greenhouse. 2. The opening method of the ventilation window is an electric gear switch. 3. Install anti-insect nets at the vents.

Side Ventilation System Of The Greenhouse

1. There are vents on both sides of the greenhouse.

2. The opening method of the ventilation window is an electric gear switch, and a sliding window can also be used. 3. Insect nets are installed at the vents.

Greenhouse shading system

External Shading System

1. The external shading system is fixed on the top of the greenhouse frame, and the shading net is supported by columns and beams.

2. The framework of the sunshade system is the same as that of the greenhouse, using hot-dip galvanized steel pipes.

3. The outer sunshade net is made of black HDPE material and fixed with black polyester rope.

Internal Shading System

1. The internal shading system is fixed under the circular arch of the greenhouse. 2. The sunshade net of the internal sunshade system is made of aluminum foil + polyester yarn, and the white filter can reflect sunlight and reduce the heat in the greenhouse. 3. The sunshade net has a moisturizing and anti-condensation function, and the woven structure allows sufficient water vapor to pass through and prevents condensation on the lower part of the sunshade net.

Greenhouse heating system

Heating Boiler

1. According to the area to be heated, different specifications of boilers can be selected. 2. The fuel for the boiler includes natural gas, coal, diesel, biomass, etc.

Radiator

1. According to the area to be heated, different specifications and quantities of radiators can be selected. 2. The heating methods of the radiator include water heating, electric heating, gas, oil and so on.

Air Conditioner

1. According to the area to be heated, different specifications and quantities of air conditioners can be selected. 2. It can cool down in summer and heat up in winter.

Greenhouse cooling system

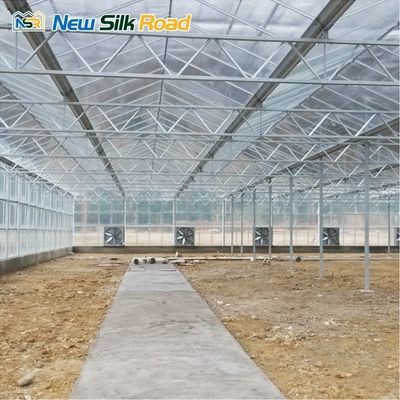

Cooling Fan

1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse. 2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.

Cooling Pad

1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.

2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.

Greenhouse Cooling System

1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect. 2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.

Manufacturing Technique

FAQ

Q1: Are you a trading company or a manufacturer? Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail. Q2: How to get a quotation for the greenhouse? A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request. Q3: How should I choose a greenhouse system? A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details. Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase? A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses. Q5: Can you provide samples? Is it free or extra? A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
