Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel

Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel

Large Image :  Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel

Product Details:
Place of Origin: Shandong, China
Brand Name: NSR Greenhouse
Model Number: NSR Greenhouse
Payment & Shipping Terms:
Minimum Order Quantity: 100 square meters
Price: $30.00/square meters 100-999 square meters
Contact Now

Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel

Description
Manufacturer: Shandong New Silk Road Greenhouse Instruction For Use: -
Size: Small Material: PE
Type: Solar Agricultural Greenhouses Cover Material: Film
Layer: Single Steel Material: Hot Galvanized Steel Pipe
Span Width: 6m/8m/9.6m/10m/12m/Customized Gutter Height: 1.5-3m/Customized
Top Height: 3.5-5m/Customized Ventilation: Roof Vents/Side Vents
Optional System: Cooling System.irrigation System.ventilation.etc Application: Vegetable Fruits Flowers
Covering: 100-200micro PO Film Keyword: Solar Greenhouse
Length: Customized Size

Products Description
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 0

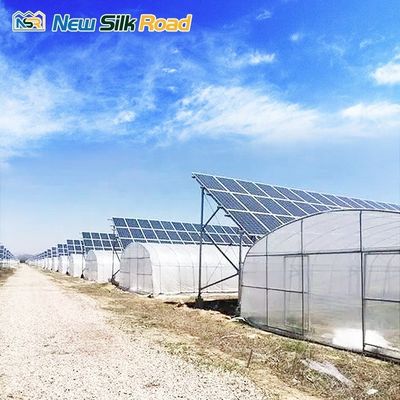

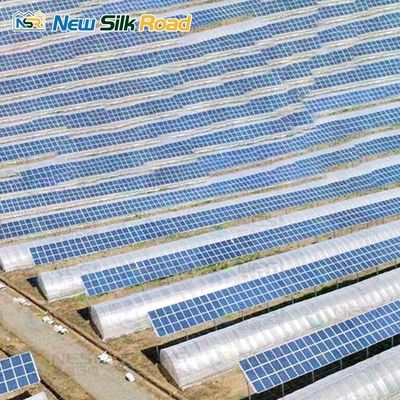

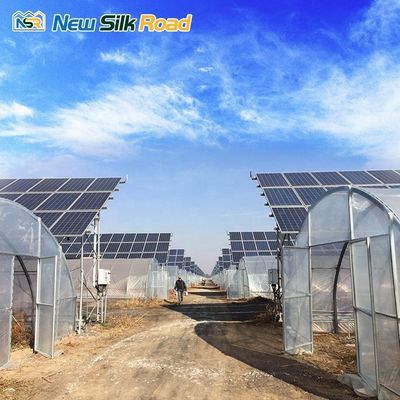

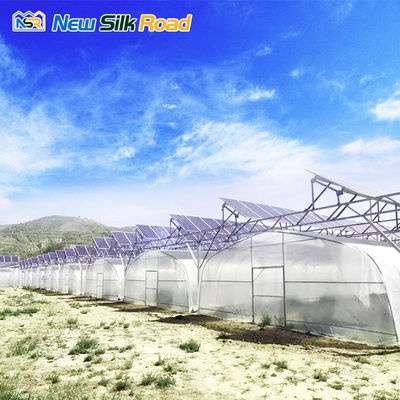

NSR GREENHOUSE -Single-span Photovoltaic Film Greenhouse
* The single-span photovoltaic thin film greenhouse perfectly combines ordinary thin film greenhouses with photovoltaic power generation. * The surface of the greenhouse is covered with plastic film, and the front or back is covered with solar panels. * Electricity generated by solar panels can be used for electrical equipment in the greenhouse, and excess electricity can also be stored for night lighting or sold to the state. *Greenhouses are useful in areas with strong sunlight. It can be used in vegetable and fruit planting, aquaculture, animal husbandry, exhibitions, ecological restaurants, teaching and scientific research, etc.
Product Name
Single-span Photovoltaic Film Greenhouse
Span
6m/8m/9.6m/10m/12m/Customized
Length
20m/50m/100m/Customized
Shoulder Height
1.5m-1.8m / Customized
Roof Height
3.5m-5.8m / Customized
Wind Load
1.2 kn/㎡
Snow Load
1.0 kn/㎡
Max Rain Quantity
150mm/h
Greenhouse system description
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 1

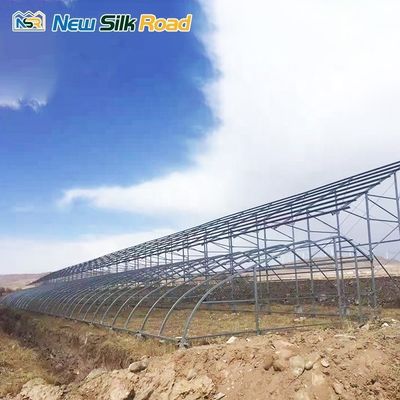

All steel pipes and connections are hot-dip galvanized
1. The greenhouse is suitable for all areas and will play a huge role in areas with strong solar light and insufficient electricity; 2. The greenhouse has beautiful appearance and long service life. It is the highest grade product in the greenhouse; 3. The steel materials used in the greenhouse frame structure and connecting parts are all hot-dip galvanized; 4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code"; 5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 2

Greenhouse Top - Solar Power

1. The top of the greenhouse can be covered with solar panels on one or both sides; 2. The solar panel is covered with polycarbonate sheet or plastic film. 3. The power of the solar panel can be customized.
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 3

Solar Panels

1. The power of solar power panels can be customized.
2. The size of the solar power panels can be adjusted.
Greenhouse Ventilation System
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 4

Top Ventilation System Of The Greenhouse

1. Ventilation windows can be installed on side 1 or side 2 of the spire on the top of the greenhouse. 2. The opening method of the ventilation window is an electric gear switch. 3. Install anti-insect nets at the vents.
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 5

Side Ventilation System Of The Greenhouse

1. There are vents on both sides of the greenhouse.
2. The opening method of the ventilation window is an electric gear switch, and a sliding window can also be used. 3. Insect nets are installed at the vents.
Greenhouse heating system
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 6

Heating Boiler

1. According to the area to be heated, different specifications of boilers can be selected. 2. The fuel for the boiler includes natural gas, coal, diesel, biomass, etc.
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 7

Radiator

1. According to the area to be heated, different specifications and quantities of radiators can be selected. 2. The heating methods of the radiator include water heating, electric heating, gas, oil and so on.
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 8

Air Conditioner

1. According to the area to be heated, different specifications and quantities of air conditioners can be selected. 2. It can cool down in summer and heat up in winter.
Greenhouse cooling system
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 9

Cooling Fan

1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse. 2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 10

Cooling Pad

1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 11

Greenhouse Cooling System

1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect. 2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 12
Manufacturing Technique
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 13
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 14
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 15
Small Single-Span Solar Greenhouse for Agriculture Made of PE and Galvanized Steel 16
FAQ
Q1: Are you a trading company or a manufacturer? Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail. Q2: How to get a quotation for the greenhouse? A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request. Q3: How should I choose a greenhouse system? A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details. Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase? A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses. Q5: Can you provide samples? Is it free or extra? A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
