Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage

Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage

Large Image :  Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage

Product Details:
Place of Origin: Shandong, China
Brand Name: NSR Greenhouse
Model Number: NSR Greenhouse
Payment & Shipping Terms:
Minimum Order Quantity: 500 square meters
Price: $50.00/square meters 500-999 square meters

Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage

Description
Manufacturer: NSR Instruction For Use: NSR
Size: Large Type: Solar Agricultural Greenhouses
Cover Material: Glass Steel Material: Hot Galvanized Steel Pipe
Span Width: 6m/8m/9.6m/10m/12m/Customized Section: 4 Or 5 M/Customized
Gutter Height: 3-5m/Customized Top Height: 4-7m/Customized
Ventilation: Roof Vents/Side Vents Optional System: Cooling System.irrigation System.ventilation.etc
Covering: Glass Application: Vegetable Fruits Flowers
Keyword: Solar Greenhouse

Products Description
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 0

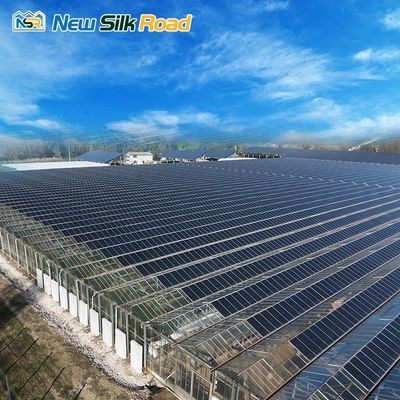

NSR GREENHOUSE - Venlo Type Multi-Span Photovoltaic Solar Glass Greenhouse
* Venlo-style multi-span solar glass greenhouse is a high-tech intelligent greenhouse. * The surface of the greenhouse is covered with tempered glass, and the top is covered with solar power panels. * The electricity generated by the solar panels on the top of the greenhouse can be used for electrical equipment in the greenhouse, and the excess electricity can also be stored for night lighting or sold to the country. * The greenhouse can play a huge role in areas with strong sunlight. It can be used for vegetable and fruit planting, aquaculture, animal husbandry, exhibitions, ecological restaurants, teaching and scientific research, etc.
Product Name
Venlo Type Multi-Span Photovoltaic Solar Glass Greenhouse
Span
6m/8m/9.6m/10m/12m/Customized
Length
20m/50m/100m/Customized
Shoulder Height
1.5m-1.8m / Customized
Roof Height
3.5m-5.8m / Customized
Wind Load
1.2 kn/㎡
Snow Load
1.0 kn/㎡
Max Rain Quantity
150mm/h
Greenhouse system description
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 1
All steel pipes and connections are hot-dip galvanized
1. The greenhouse is suitable for all areas and will play a huge role in areas with strong solar light and insufficient electricity; 2. The greenhouse has beautiful appearance and long service life. It is the highest grade product in the greenhouse; 3. The steel materials used in the greenhouse frame structure and connecting parts are all hot-dip galvanized; 4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code"; 5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 2

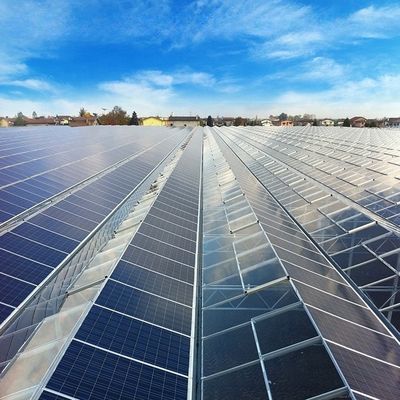

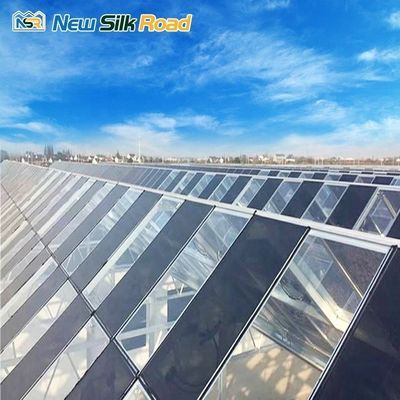

Greenhouse Top - Solar Power

1. The top of the greenhouse can be covered with solar power panels on one side or two sides; 2. The remaining side can be covered with ordinary tempered glass or diffuse scattering glass. 3. The power of solar power panels can be customized.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 3

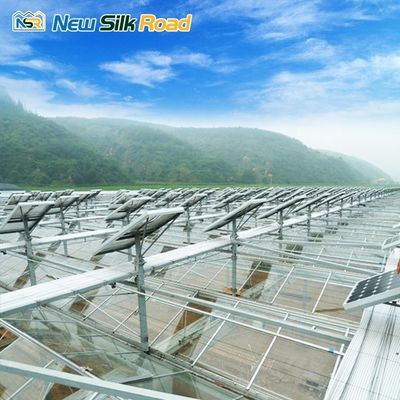

Solar Panels

1. The power of solar power panels can be customized.
2. The size of the solar power panels can be adjusted.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 4

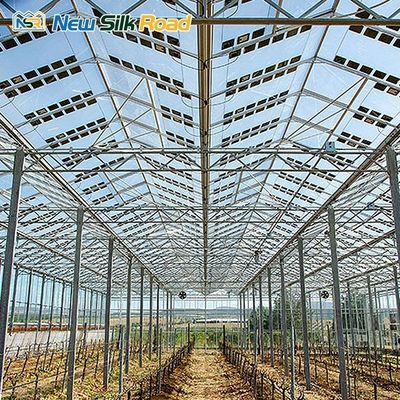

Greenhouse Top - Solar Power

1. The top of the greenhouse can be covered with solar power panels on one side or two sides; 2. The remaining side can be covered with ordinary tempered glass or diffuse scattering glass. 3. The power of solar power panels can be customized.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 5

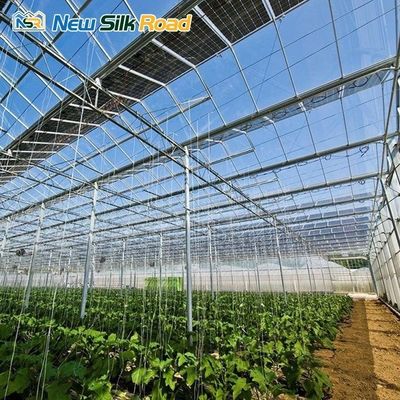

Solar Panels

1. The power of solar power panels can be customized.
2. The size of the solar power panels can be adjusted.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 6

Greenhouse Wall Covering Material-Diffuse Glass

1. The wall of the greenhouse can be covered with a single layer of tempered float glass; 2. The wall of the greenhouse can be covered with a single layer of diffuse scattering glass.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 7

Greenhouse Wall Covering -Tempered Insulating Glass

1. The wall of the greenhouse can be covered with double-layer tempered float glass;
Greenhouse Ventilation System
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 8

Top Ventilation System Of The Greenhouse

1. Ventilation windows can be installed on side 1 or side 2 of the spire on the top of the greenhouse. 2. The opening method of the ventilation window is an electric gear switch. 3. Install anti-insect nets at the vents.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 9

Side Ventilation System Of The Greenhouse

1. There are vents on both sides of the greenhouse.
2. The opening method of the ventilation window is an electric gear switch, and a sliding window can also be used. 3. Insect nets are installed at the vents.
Greenhouse shading system
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 10

External Shading System

1. The external shading system is fixed on the top of the greenhouse frame, and the shading net is supported by columns and beams.
2. The framework of the sunshade system is the same as that of the greenhouse, using hot-dip galvanized steel pipes.
3. The outer sunshade net is made of black HDPE material and fixed with black polyester rope.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 11

Internal Shading System

1. The internal shading system is fixed under the circular arch of the greenhouse. 2. The sunshade net of the internal sunshade system is made of aluminum foil + polyester yarn, and the white filter can reflect sunlight and reduce the heat in the greenhouse. 3. The sunshade net has a moisturizing and anti-condensation function, and the woven structure allows sufficient water vapor to pass through and prevents condensation on the lower part of the sunshade net.
Greenhouse heating system
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 12

Heating Boiler

1. According to the area to be heated, different specifications of boilers can be selected. 2. The fuel for the boiler includes natural gas, coal, diesel, biomass, etc.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 13

Radiator

1. According to the area to be heated, different specifications and quantities of radiators can be selected. 2. The heating methods of the radiator include water heating, electric heating, gas, oil and so on.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 14

Air Conditioner

1. According to the area to be heated, different specifications and quantities of air conditioners can be selected. 2. It can cool down in summer and heat up in winter.
Greenhouse cooling system
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 15

Cooling Fan

1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse. 2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 9

Cooling Pad

1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 17

Greenhouse Cooling System

1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect. 2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 18
Manufacturing Technique
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 19
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 20
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 21
Solar-Powered Large and Small Agricultural Greenhouses Galvanized Steel Frame with PE Film Glass Cover for Plant Usage 22
FAQ
Q1: Are you a trading company or a manufacturer? Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail. Q2: How to get a quotation for the greenhouse? A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request. Q3: How should I choose a greenhouse system? A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details. Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase? A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses. Q5: Can you provide samples? Is it free or extra? A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
