Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems

Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems

Large Image :  Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems

Product Details:
Place of Origin: Shandong, China
Brand Name: NSR Greenhouse
Model Number: NSR Greenhouse
Payment & Shipping Terms:
Minimum Order Quantity: 100 square meters
Price: $15.00/square meters 100-1999 square meters
Packaging Details: LCL transportation or whole container transportation
Supply Ability: 1000000 Square Meter/Square Meters per Month

Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems

Description
Manufacturer: NSR Size: Small
Type: Single-Span Agricultural Greenhouses, Passive Solar Cover Material: Plastic Film
Steel Material: Hot Galvanized Steel Pipe Span Width: 8m/10m/12m/15m/Customized
Gutter Height: 3-5m, Customized Top Height: 5.5-7.5m, Customized
Ventilation: Roof Vents/Side Vents Optional System: Shading System.irrigation System.ventilation.etc
Application: Planting Of Vegetables And Flowers Length: 10-100m/Customized
Keyword: Passive Solar Greenhouse Port: QINGDAO

Products Description
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 0

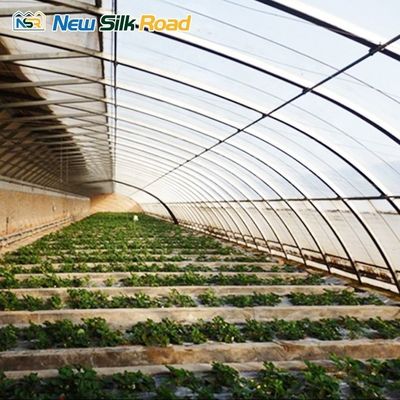

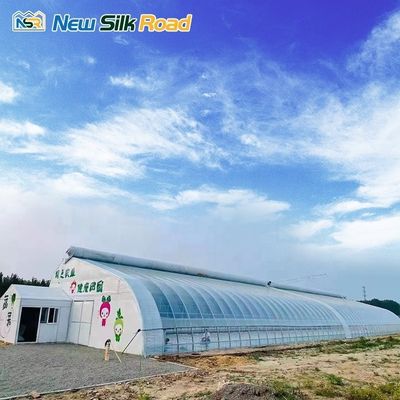

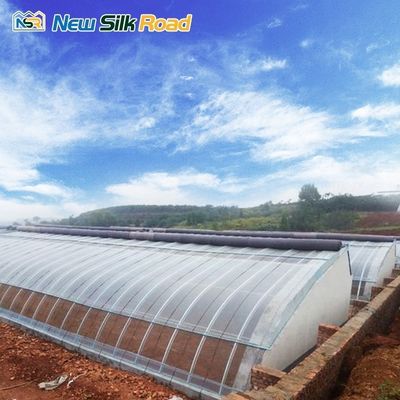

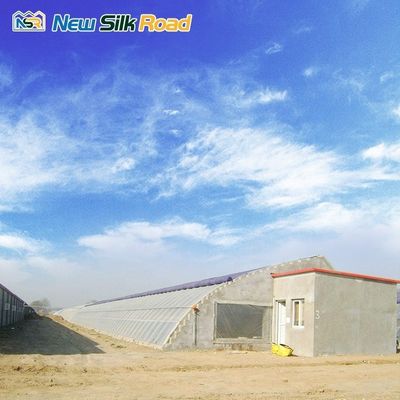

NSR GREENHOUSE - Single Span China Sunlight Plastic Film Greenhouse
* The greenhouse is simple in structure and easy to assemble. It is widely used for growing vegetables and fruits. * The most widely used greenhouse in China, the back of the greenhouse is usually a solid wall, which has excellent thermal insulation performance. The surface of the greenhouse is covered with a layer of transparent plastic film, and the outside can be covered with sunshade nets. *The steel pipes and connectors used in the structure of the greenhouse are all hot-dip galvanized, and the service life of the structure is about 20 years. * Ventilation windows can be installed in the greenhouse. There are two ways to open the ventilation windows, manual and electric, and insect-proof nets are installed at the vents.
Product Name
Single Span China Sunlight Plastic Film Greenhouse
Span
5m/6m/7m/8m/9m/10m/12m/Customized
Length
20m/50m/100m/Customized
Shoulder Height
1.5m-1.8m / 2m/Customized
Roof Height
3.5m-5m / Customized
Wind Load
80-130 KM/H
Snow Load
0.5 KN/M2
Max Rain Quantity
140mm/h
Product Advantages
One-Stop Service; MOQ: 1 SET; Can Be Transported Door To Door.
Greenhouse system description
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 1

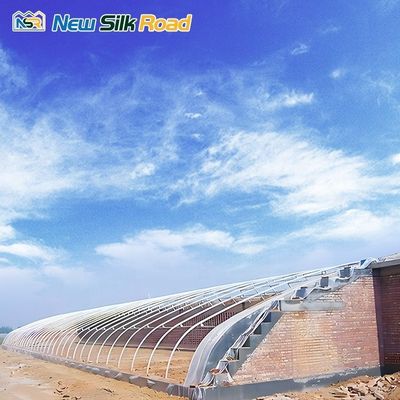

Greenhouse Frame
1. Single-span and single-arch design, the size of the greenhouse can be customized; 2. According to the climate in the area, you can choose whether to use embedded parts, ventilation windows, thermal insulation quilts, sunshade nets and other systems and accessories. 3. The structure of the greenhouse frame and the steel used in the connecting parts are all hot-dip galvanized; 4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code"; 5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 2
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 3
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 4
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 5
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 6
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 7
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 8
Film type
PE/PO
Film color
Colorless/light blue/custom
Film thickness
0.1mm/0.12mm/0.15mm/0.18mm
/0.2mm/Customized
Service life
3 years/5 years/Customized
Film effect
Anti-ultraviolet, Anti-fog, Anti-aging.
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 9

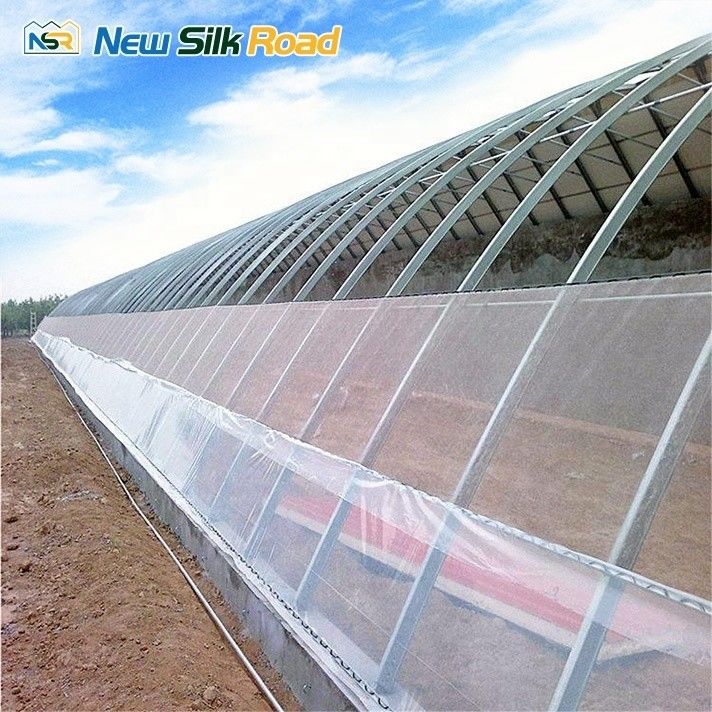

Insect net type
Insect net
Product specifications:
10-100 mesh/customized;
Service life
3 years/5 years/Customized
width:
1m/1.2m/1.5m/2m-15m (can be spliced)
Material
100% virgin LDPE/LLDPE/EVA/PE with UV treated
Features
Tear resistance,UV resistant,anti-age,dustproof,heat preservation
Greenhouse Ventilation System
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 10
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 11
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 12
Greenhouse heating system
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 13

Electric Heaters

1. Output power: 3-45KW; 2580-38700 kcal/h; 2. Output air volume: 210-2400 m³/h;
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 14

Fuel Heater

1. Output power: 20-81KW; 17200-69600 kcal/h; 2. Output air volume: 1550-3300 m³/h; 3. Continuous working time: 17-12 h; 4. Fuel consumption: 1.67-6.8 kg/h; 5. Mailbox capacity: 36-105 L;
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 15

Gas Heater

1. Output power: 18-103KW; 15500-88600 kcal/h; 2. Output air volume: 1000-3260 m³/h;
Greenhouse cooling system
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 16

Cooling Fan

1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse. 2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 17

Cooling Pad

1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 18

Greenhouse Cooling System

1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect. 2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 19
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 20
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 21
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 22
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 23
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 24
Galvanized Steel Frame Greenhouse For Winter With Ventilation And Irrigation Systems 25
FAQ
Q1: Are you a trading company or a manufacturer? Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail. Q2: How to get a quotation for the greenhouse? A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request. Q3: How should I choose a greenhouse system? A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details. Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase? A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses. Q5: Can you provide samples? Is it free or extra? A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
