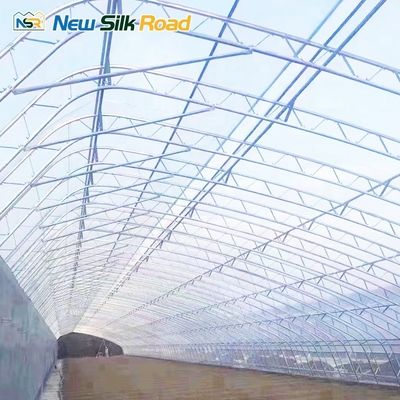

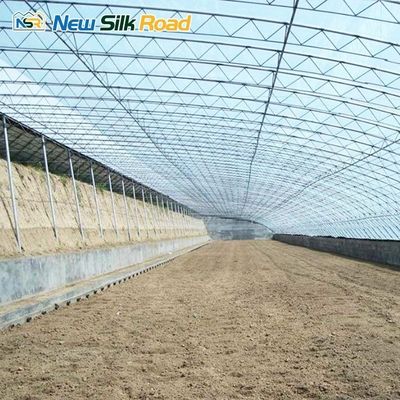

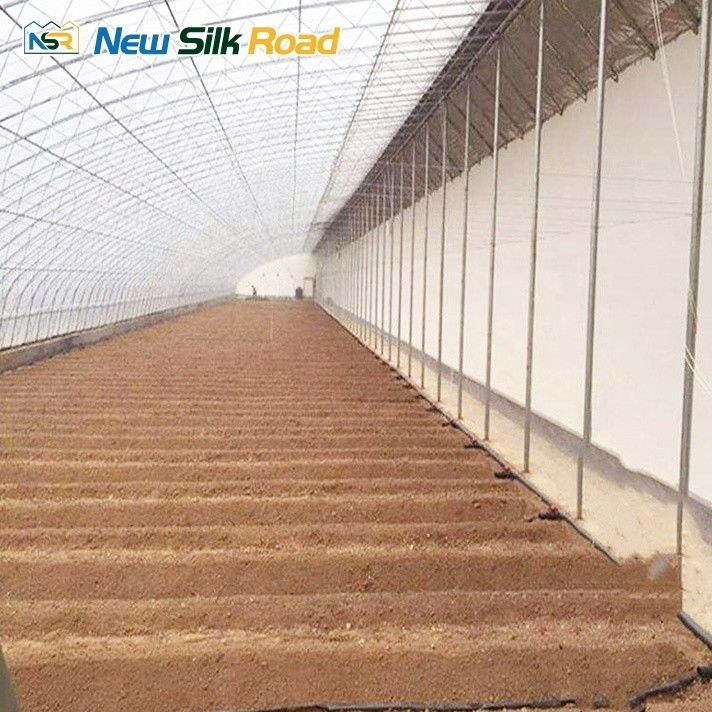

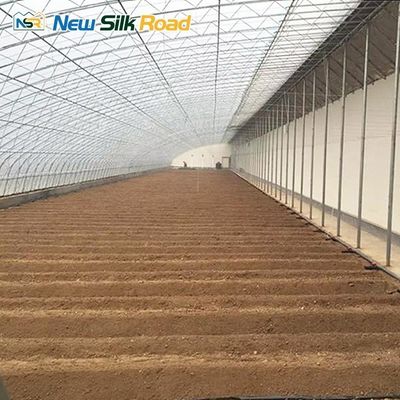

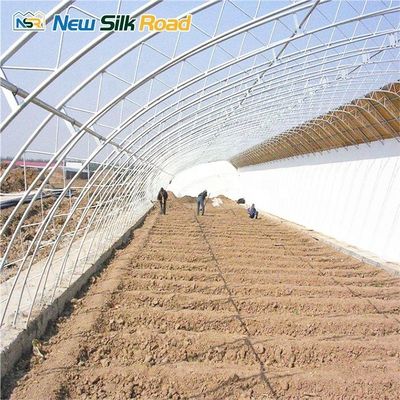

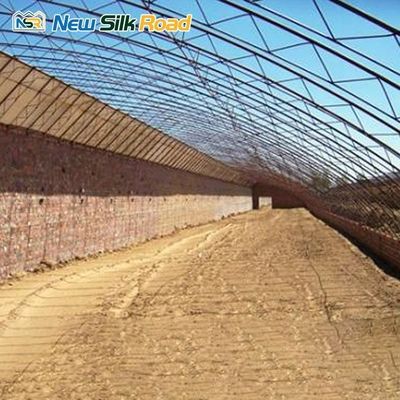

NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant

NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant

Large Image :  NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant

Product Details:
Place of Origin: Shandong, China
Brand Name: NSR Greenhouse
Model Number: NSR Greenhouse
Payment & Shipping Terms:
Minimum Order Quantity: 100 square meters
Price: $10.00/square meters 100-1999 square meters
Packaging Details: Less than one container is packed in wooden boxes and then transported by LCL.<br>It can be transported in the whole container and placed flat in the container.
Supply Ability: 1000000 Square Meter/Square Meters per Month
Contact Now

NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant

Description
Features: Size Can Be Customized Manufacturer: NSR
Size: Small Type: Single-Span Agricultural Greenhouses
Cover Material: Plastic Film Steel Material: Hot Galvanized Steel Pipe
Span Width: 6m/8m/9m/10m/12m/Customized Top Height: 3-5m/Customized
Ventilation: Roof Vents/Side Vents Application: Vegetable And Fruit Planting
Covering: 100/120/150/200micro PE Film Length: 10-100m
MOQ: 100 Square Meters Greenhouse Structure: Double-layer Skeleton And Film
Port: QINGDAO

Products Description
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 0
NSR GREENHOUSE - Single Span Double-layer Plastic Film Greenhouse
* The structure of the greenhouse is simple and easy to assemble. It can be fastened by bolts without welding. It is widely used in the cultivation of vegetables and fruits. * The surface of the greenhouse can be covered with a transparent plastic film or two layers. *The steel pipes and connectors used in the greenhouse structure are all hot-dip galvanized, and the service life of the structure is about 20 years. * Ventilation windows can be installed on the top and both sides of the greenhouse, and insect-proof nets can be installed at the vents of the ventilation windows.
Product Name
Single Span Double-layer Plastic Film Greenhouse
Span
5m/6m/7m/8m/9m/10m/12m/Customized
Length
20m/50m/100m/Customized
Shoulder Height
1.5m-1.8m / 2m/Customized
Roof Height
3.5m-5m / Customized
Wind Load
80-130 KM/H
Snow Load
0.5 KN/M2
Max Rain Quantity
140mm/h
Product Advantages
One-Stop Service; MOQ: 1 SET; Can Be Transported Door To Door.
Greenhouse system description
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 1
Greenhouse Frame
1. Single-span double-layer film design, greenhouse size can be customized; 2. According to the climate of the area, you can choose whether to use embedded parts. It can be covered with one or two layers of film, and the outermost layer can also be covered with a quilt. 3. The steel materials used in the greenhouse frame structure and connecting parts are all hot-dip galvanized; 4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code"; 5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 2
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 3
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 4
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 5
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 6
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 7
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 8
Film type
PE/PO
Film color
Colorless/light blue/custom
Film thickness
0.1mm/0.12mm/0.15mm/0.18mm
/0.2mm/Customized
Service life
3 years/5 years/Customized
Film effect
Anti-ultraviolet, Anti-fog, Anti-aging.
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 9
Insect net type
Insect net
Product specifications:
10-100 mesh/customized;
Service life
3 years/5 years/Customized
width:
1m/1.2m/1.5m/2m-15m (can be spliced)
Material
100% virgin LDPE/LLDPE/EVA/PE with UV treated
Features
Tear resistance,UV resistant,anti-age,dustproof,heat preservation
Greenhouse heating system
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 10

Electric Heaters

1. Output power: 3-45KW; 2580-38700 kcal/h; 2. Output air volume: 210-2400 m³/h;
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 11

Fuel Heater

1. Output power: 20-81KW; 17200-69600 kcal/h; 2. Output air volume: 1550-3300 m³/h; 3. Continuous working time: 17-12 h; 4. Fuel consumption: 1.67-6.8 kg/h; 5. Mailbox capacity: 36-105 L;
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 12

Gas Heater

1. Output power: 18-103KW; 15500-88600 kcal/h; 2. Output air volume: 1000-3260 m³/h;
Greenhouse cooling system
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 13

Cooling Fan

1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse. 2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 14

Cooling Pad

1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 15

Greenhouse Cooling System

1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect. 2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 16
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 17
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 18
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 19
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 20
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 21
NSR Greenhouse Agricultural Double Layer Chinese Style Solar Greenhouse For Plant 22
FAQ
Q1: Are you a trading company or a manufacturer? Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail. Q2: How to get a quotation for the greenhouse? A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request. Q3: How should I choose a greenhouse system? A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details. Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase? A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses. Q5: Can you provide samples? Is it free or extra? A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
