Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer

Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer

Large Image :  Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer

Product Details:
Place of Origin: Shandong, China
Brand Name: NSR
Model Number: NSR Greenhouse
Payment & Shipping Terms:
Minimum Order Quantity: 100 square meters
Price: $6.00/square meters 100-999 square meters
Contact Now

Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer

Description
Manufacturer: NSR Instruction For Use: NSR
Size: Small Type: Single-Span Agricultural Greenhouses
Cover Material: Plastic Film Steel Material: Hot Galvanized Steel Pipe
Span Width: 6m/8m/9m/10m/12m/Customized Top Height: 5.5-7.5m, Customized
Ventilation: Roof Vents/Side Vents Optional System: Cooling System.irrigation System.ventilation.etc
Application: Vegetable Fruits Flowers Usage: Flower Vegetable Growing
Length: 10-100m MOQ: 100 Square Meters
Keyword: Single-span Greenhouses

Products Description
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 0

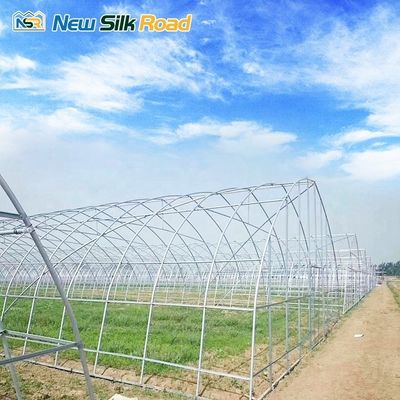

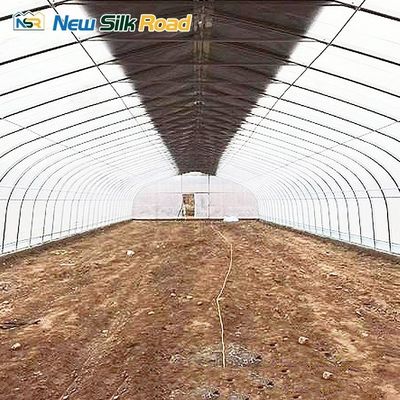

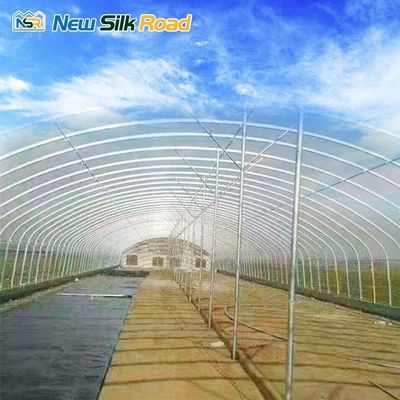

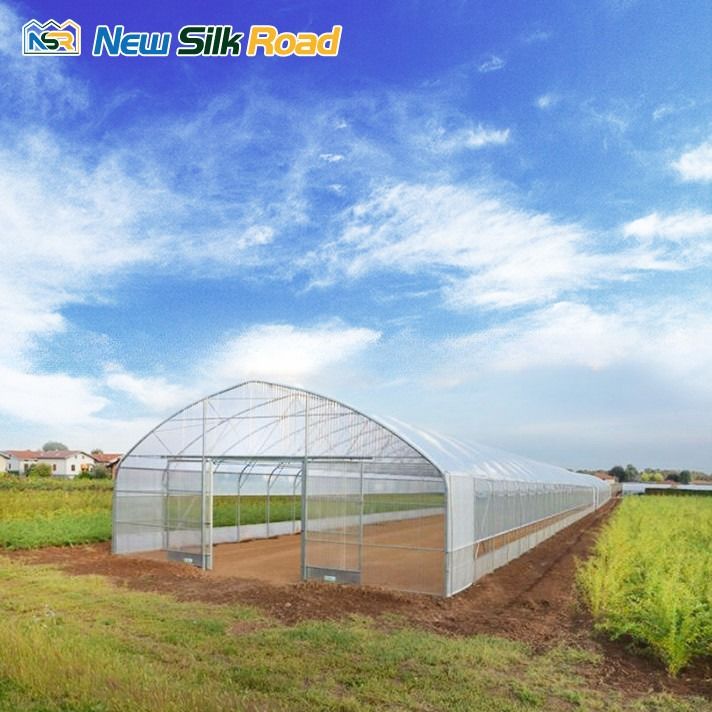

NSR GREENHOUSE - Single Span Single Arch  Plastic Film Greenhouse
* The greenhouse is simple in structure and easy to assemble, and is widely used for vegetable and fruit planting. * The surface of the greenhouse is covered with a layer of transparent plastic film, and the outside can be covered with sunshade nets. * The steel pipes and connectors used in the structure of the greenhouse have been hot-dip galvanized, and the service life of the structure is about 20 years. * Ventilation windows can be installed on the top and 2 sides of the greenhouse, and insect-proof nets are installed at the vents of the ventilation windows.
Product Name
Single Span Single Arch Plastic Film Greenhouse
Span
5m/6m/7m/8m/9m/10m/12m/Customized
Length
20m/50m/100m/Customized
Shoulder Height
1.5m-1.8m / 2m/Customized
Roof Height
3.5m-5m / Customized
Wind Load
80-130 KM/H
Snow Load
0.5 KN/M2
Max Rain Quantity
140mm/h
Product Advantages
One-Stop Service; MOQ: 1 SET; Can Be Transported Door To Door.
Greenhouse system description
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 1

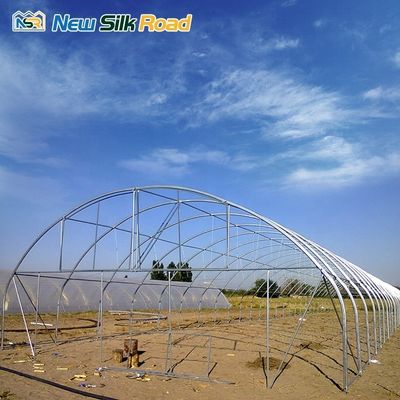

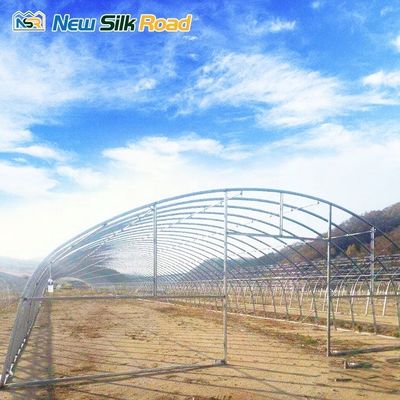

Greenhouse Frame
1. Single span and single arch design, the size of the greenhouse can be customized; 2. According to the climate in the area, you can choose whether to use embedded parts, shading nets and other systems and accessories. 3. The steel materials used in the greenhouse frame structure and connecting parts are all hot-dip galvanized; 4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code"; 5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 2
Film type
PE/PO
Film color
Colorless/light blue/custom
Film thickness
0.1mm/0.12mm/0.15mm/0.18mm
/0.2mm/Customized
Service life
3 years/5 years/Customized
Film effect
Anti-ultraviolet, Anti-fog, Anti-aging.
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 3
Insect net type
Insect net
Product specifications:
10-100 mesh/customized;
Service life
3 years/5 years/Customized
width:
1m/1.2m/1.5m/2m-15m (can be spliced)
Material
100% virgin LDPE/LLDPE/EVA/PE with UV treated
Features
Tear resistance,UV resistant,anti-age,dustproof,heat preservation
Greenhouse Ventilation System
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 4
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 5
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 6
Greenhouse heating system
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 7

Electric Heaters

1. Output power: 3-45KW; 2580-38700 kcal/h; 2. Output air volume: 210-2400 m³/h;
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 8

Fuel Heater

1. Output power: 20-81KW; 17200-69600 kcal/h; 2. Output air volume: 1550-3300 m³/h; 3. Continuous working time: 17-12 h; 4. Fuel consumption: 1.67-6.8 kg/h; 5. Mailbox capacity: 36-105 L;
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 9

Gas Heater

1. Output power: 18-103KW; 15500-88600 kcal/h; 2. Output air volume: 1000-3260 m³/h;
Greenhouse cooling system
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 10

Cooling Fan

1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse. 2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 11

Cooling Pad

1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 12

Greenhouse Cooling System

1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect. 2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 13
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 14
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 15
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 16
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 17
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 18
Small Tunnel/Hoop Design Agricultural Single-Span Greenhouse Hydroponics with PE Layer 19
FAQ
Q1: Are you a trading company or a manufacturer? Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail. Q2: How to get a quotation for the greenhouse? A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request. Q3: How should I choose a greenhouse system? A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details. Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase? A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses. Q5: Can you provide samples? Is it free or extra? A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
