Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting

Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting

Large Image :  Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting

Product Details:
Place of Origin: Shandong, China
Brand Name: NSR GREENHOUSE
Model Number: NSR GREENHOUSE
Payment & Shipping Terms:
Minimum Order Quantity: 100 square meters
Price: $5.00/square meters 100-999 square meters
Contact Now

Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting

Description
Manufacturer: Shandong New Silk Road Greenhouse Instruction For Use: -
Size: Large Material: PE
Type: Multi-Span Agricultural Greenhouses Cover Material: Film
Layer: Single Span: 6m/8m/9.6m/10m/12m/Customized
Length: 20m/50m/100m/Customized Shoulder Height: 1.5m-1.8m / Customized
Roof Height: 3.5m-5.8m / Customized Wind Load: 0.6 Kn/㎡
Snow Load: 140mm/h Usage: Vegetables Growing
Application: Agriculture Hydroponic Planting Optional System: Cooling System.hydroponic System.ventilation.etc
MOQ: 100 Square Meters

Products Description
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 0

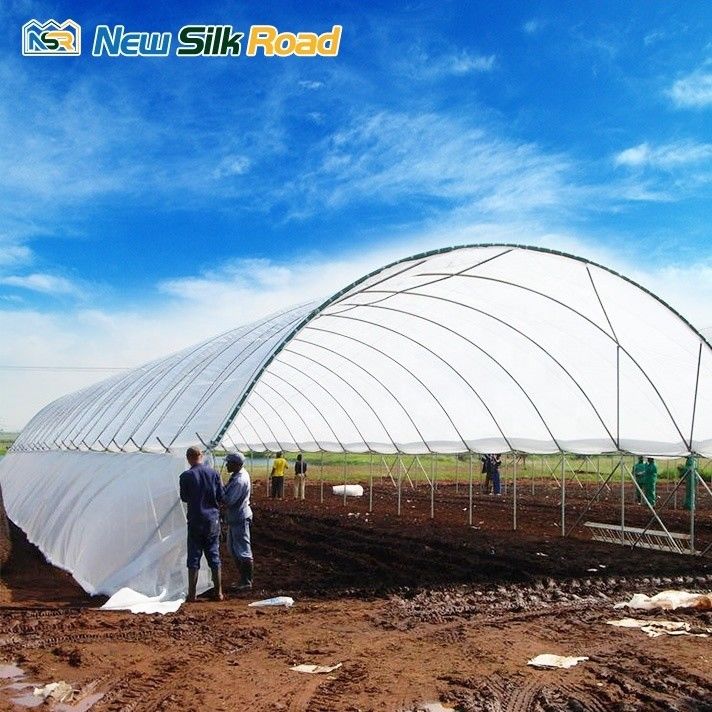

NSR GREENHOUSE-Tunnel type multi-span agricultural film greenhouse
* Tunnel multi-span film greenhouse is a kind of greenhouse with simple structure. * The surface of the greenhouse is covered with plastic film, which is economical and easy to install. * The space utilization rate of multi-span greenhouse is high. Ventilation windows can be set on and around the top, with strong ventilation capacity, which can prevent heat loss and cold air intrusion. * Mainly used in tropical areas to grow blueberries, strawberries, and other tropical fruits.
Product Name
Tunnel type multi-span agricultural film greenhouse
Span
6m/8m/9.6m/10m/12m/Customized
Length
20m/50m/100m/Customized
Shoulder Height
3m-6m / Customized
Roof Height
4.8m-7.8m / Customized
Wind Load
0.5 kn/㎡ / Customized
Snow Load
0.5 kn/㎡ / Customized
Max Rain Quantity
140mm/h
Greenhouse Ventilation System
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 1

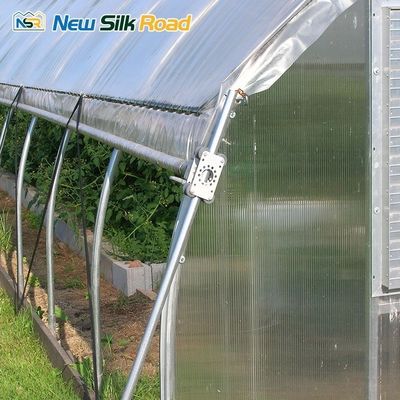

Top Ventilation System Of The Greenhouse

1. There are vents on both sides of each round arch at the top of the greenhouse. 2. The vent opening method is electric roll film switch. 3. Insect nets are installed in the vents.
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 2

Side Ventilation System Of The Greenhouse

1. There are vents on both sides of the greenhouse. 2. The vent opening method is electric roll film switch. 3. Insect nets are installed in the vents.
Greenhouse heating system
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 3

Heating Boiler

1. According to the area to be heated, different specifications of boilers can be selected. 2. The fuel for the boiler includes natural gas, coal, diesel, biomass, etc.
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 4

Radiator

1. According to the area to be heated, different specifications and quantities of radiators can be selected. 2. The heating methods of the radiator include water heating, electric heating, gas, oil and so on.
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 5

Air Conditioner

1. According to the area to be heated, different specifications and quantities of air conditioners can be selected. 2. It can cool down in summer and heat up in winter.
Greenhouse cooling system
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 6

Cooling Fan

1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse. 2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 7

Cooling Pad

1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 8

Greenhouse Cooling System

1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect. 2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 9

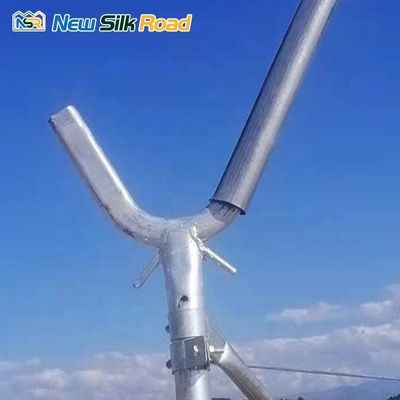

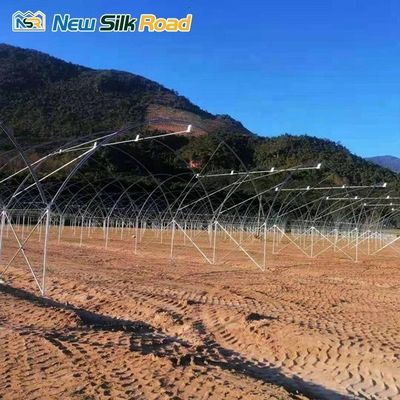

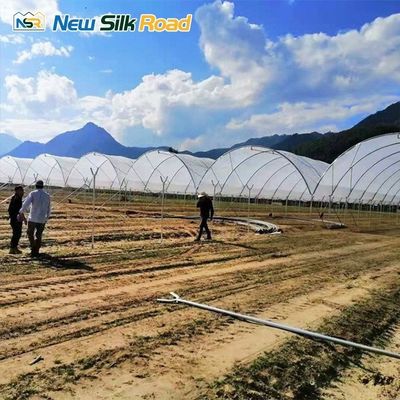

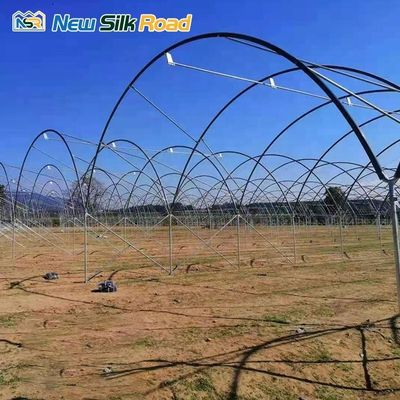

Manufacturing Technique
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 10
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 11
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 12
Economically Viable Multi-Span Tunnel Greenhouse for Agriculture Hydroponic Planting 13
FAQ
Q1: Are you a trading company or a manufacturer? Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail. Q2: How to get a quotation for the greenhouse? A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request. Q3: How should I choose a greenhouse system? A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details. Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase? A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses. Q5: Can you provide samples? Is it free or extra? A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
