Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting

Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting

Large Image :  Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting

Product Details:
Place of Origin: Shandong, China
Brand Name: NSR Greenhouse
Model Number: NSR Greenhouse
Payment & Shipping Terms:
Minimum Order Quantity: 500 square meters
Price: $20.00/square meters 500-999 square meters
Contact Now

Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting

Description
Manufacturer: Shandong New Silk Road Greenhouse Instruction For Use: NSR
Size: Large Type: Multi-Span Agricultural Greenhouses
Cover Material: Plastic Film Suitable Area: Tropical Areas, Seaside, Hurricane Areas
Steel Material: Hot Galvanized Steel Pipe Span Width: 6m//8m/9.6m/10/12m/Customized
Section: 4m/4.5m/5m/Customized Gutter Height: 3-5m/Customized
Top Height: 4-6m/Customized Ventilation: Roof Vents/Side Vents
Optional System: Cooling System.irrigation System.ventilation.etc Application: Agricultural Planting
Product Name: Sawtooth Greenhouse/Tropical Greenhouse

Products Description
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 0

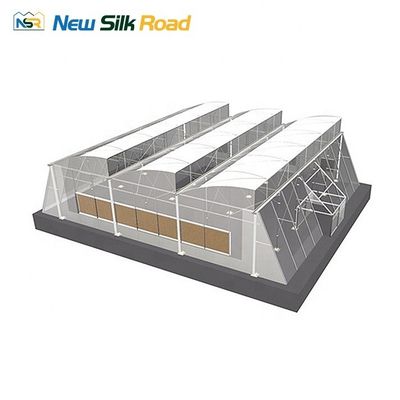

NSR GREENHOUSE - Sawtooth Type Multi-Span Agricultural Film Greenhouse
* The sawtooth multi-span film greenhouse is a greenhouse specially designed for tropical regions. * The surface of the greenhouse is covered with plastic film, which is economical and easy to install. * The sawtooth greenhouse has a high space utilization rate. There are special ventilation windows on the top and the surroundings, which have very strong ventilation capacity and can effectively resist strong winds. * It can be used in fields such as planting, aquaculture, animal husbandry, exhibitions, ecological restaurants, teaching and research of vegetables and fruits.
Product Name
Sawtooth type multi-span agricultural film greenhouse
Span
6m/8m/9.6m/10m/12m/Customized
Length
20m/50m/100m/Customized
Shoulder Height
1.5m-1.8m / Customized
Roof Height
3.5m-5.8m / Customized
Wind Load
0.6 kn/㎡
Snow Load
0.5 kn/㎡
Max Rain Quantity
140mm/h
Greenhouse system description
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 1
Greenhouse Frame
1. Suitable for use in tropical and coastal areas; 2. Suitable for use in areas with hurricanes; 3. The steel materials used in the frame structure and connecting parts of the greenhouse are all hot-dip galvanized; 4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code"; 5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 2
Film type
PE/PO
Film color
Colorless/light blue/custom
Film thickness
0.1mm/0.12mm/0.15mm/0.18mm
/0.2mm/Customized
Service life
3 years/5 years/Customized
Film effect
Anti-ultraviolet, Anti-fog, Anti-aging.
Greenhouse Ventilation System
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 3

Top Ventilation System Of The Greenhouse

1. Each vault on the top of the greenhouse has vents, and the vents are waterproofed. 2. The opening method of the ventilation window is electric switch. 3. Insect nets are installed at each vent.
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 4

Side Ventilation System Of The Greenhouse

1. There are vents on both sides of the greenhouse.
2. The vent opening method is electric roll film switch.
3. Insect nets are installed in the vents.
Greenhouse shading system
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 5

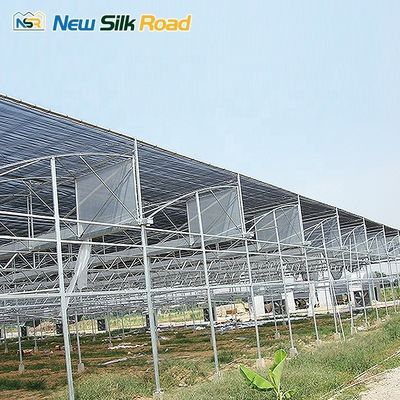

External Shading System

1. The external shading system is fixed on the top of the greenhouse frame, and the shading net is supported by columns and beams.
2. The framework of the sunshade system is the same as that of the greenhouse, using hot-dip galvanized steel pipes.
3. The outer sunshade net is made of black HDPE material and fixed with black polyester rope.
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 6

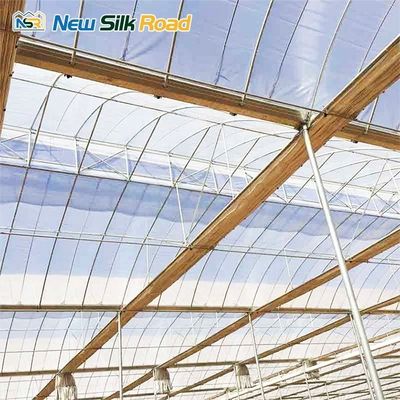

Internal Shading System

1. The internal shading system is fixed under the circular arch of the greenhouse. 2. The sunshade net of the internal sunshade system is made of aluminum foil + polyester yarn, and the white filter can reflect sunlight and reduce the heat in the greenhouse. 3. The sunshade net has a moisturizing and anti-condensation function, and the woven structure allows sufficient water vapor to pass through and prevents condensation on the lower part of the sunshade net.
Greenhouse heating system
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 7

Heating Boiler

1. According to the area to be heated, different specifications of boilers can be selected. 2. The fuel for the boiler includes natural gas, coal, diesel, biomass, etc.
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 8

Radiator

1. According to the area to be heated, different specifications and quantities of radiators can be selected. 2. The heating methods of the radiator include water heating, electric heating, gas, oil and so on.
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 9

Air Conditioner

1. According to the area to be heated, different specifications and quantities of air conditioners can be selected. 2. It can cool down in summer and heat up in winter.
Greenhouse cooling system
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 10

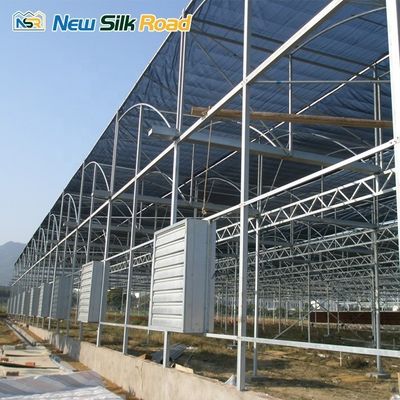

Cooling Fan

1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse. 2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 11

Cooling Pad

1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 12

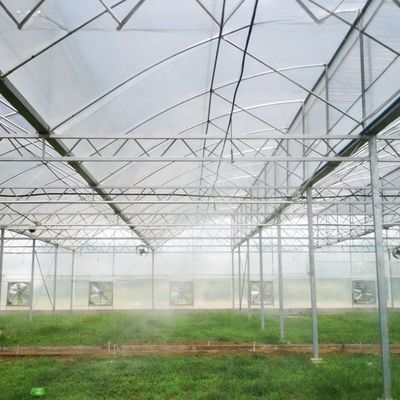

Greenhouse Cooling System

1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect. 2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 13
Manufacturing Technique
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 14
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 15
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 16
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 17
Customized Gutter Height Glass Cover Large Sawtooth Greenhouse for Hydroponic Planting 18
FAQ
Q1: Are you a trading company or a manufacturer? Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail. Q2: How to get a quotation for the greenhouse? A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request. Q3: How should I choose a greenhouse system? A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details. Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase? A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses. Q5: Can you provide samples? Is it free or extra? A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
